Linear Rail European Sliding Table Saw Workbench 90 Degree For MDF Cutting
ZDS MJ6132A sliding table saw machine Features:
(1) The maximum sawing length of this sliding table panel saw is 3200mm, which is limited to 90° sawing
(2) Equipped with stable and lightweight sliding table, running smoothly.
(3) Heavy-duty structure body, stable and durable
(4) The operation is light and labor-saving, and the driving stroke is large.
The sliding table panel saw can be used for cutting of MDF, polished board, wood-based board, solid wood board, ABS board, PVC board and other boards.
Product Parameters
| Name | Linear Rail European Sliding Table Saw Workbench 90 Degree For MDF Cutting |
| Model | MJ6128A |
| Main Saw Blade Titling Angle | 90° |
| Dimension of sliding table | 3200*390mm |
| Maximum travel of the table | 3200mm |
| Maximum cutting length | 3200mm |
| Maximum cutting height (90°) | 80mm |
| Saw Blade Diameter | 305mm |
| Saw Spindle Diameter | 30mm |
| Main Saw Blade Speed | 5500r/min |
| Main Motor | 5500w |
| Scoring Blade Diameter | 120mm |
| Scoring spindle diameter | 20mm |
| Scoring Saw Blade Speed | 7500r/min |
| Scoring Saw Motor | 1100w |
| Voltage | 380V/50HZ,220V or customize |
| Warranty: | 1 year |
| Dimension(L*W*H): | 3200*2500*900mm |
| Packing Size | 3400*1200*1400mm |
| weight | 950kg |

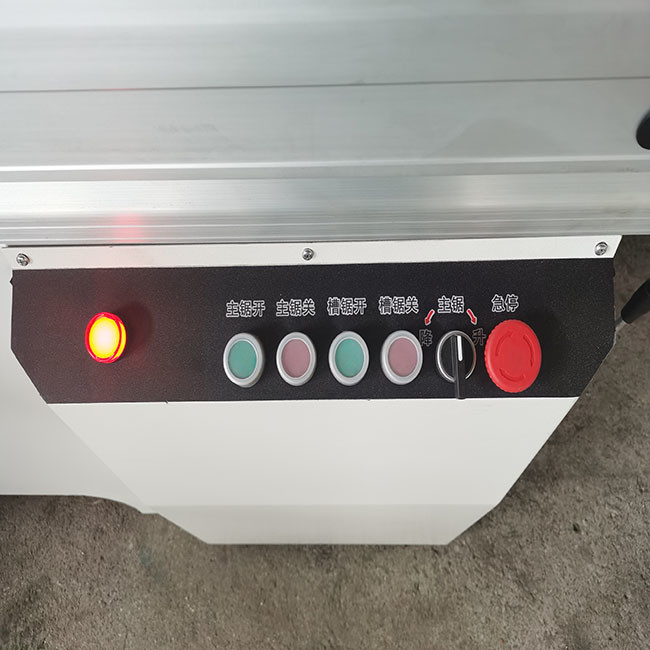

Console: electric height control of main saw, separate switch of main and auxiliary saw blades, equipped with emergency stop button, and dust cover outside the button, which is more durable

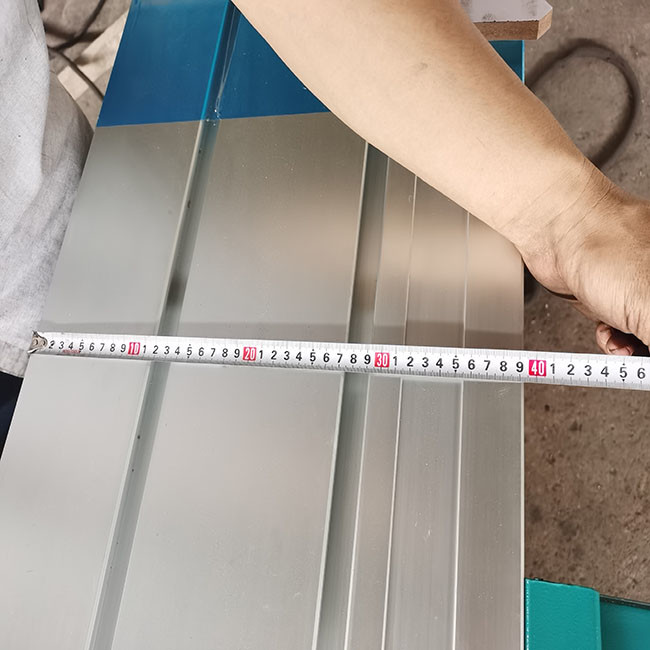

39cm wide guide rail, chrome-plated round rod structure, smooth sliding without jamming, long service life
Rocker structure, easy to move, beautiful, strong bearing capacity

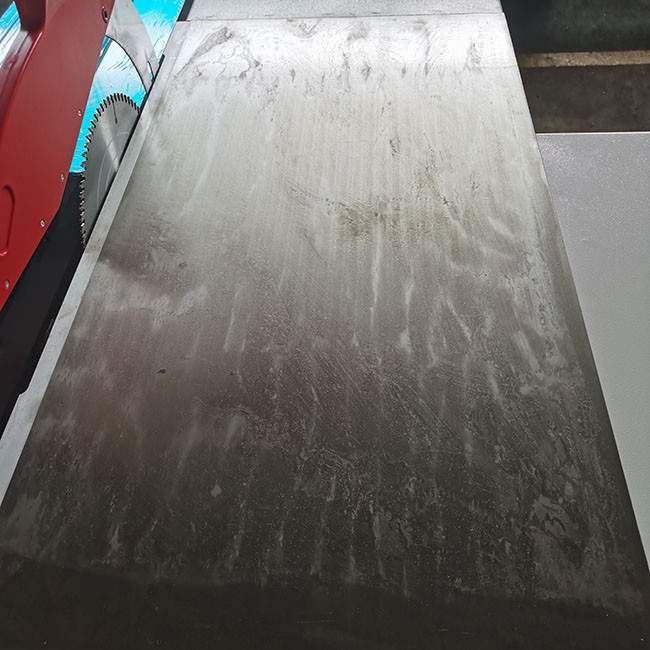

Fine-ground cast iron countertop, stable and not deformed

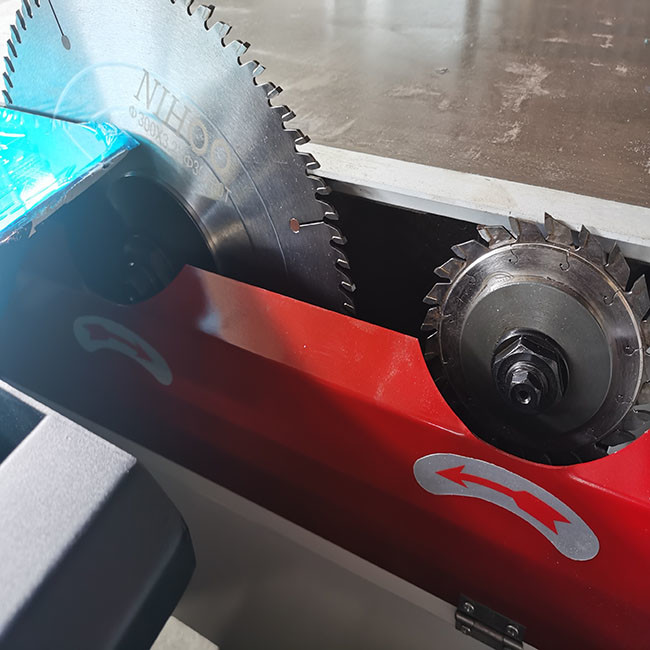

Double saw blade structure, clear division of labor, small saw scribing, large saw cutting, clean cutting edge, no burr
Dual scale with magnifying glass for easy operation
The frame is welded with thickened square steel pipe and steel plate, the structure is more stable, and it will not be deformed for a long time.
